Machine Learning 101: Predicting Drug Use Using Logistic Regression In R

Executive Summary

• Generalized Linear Models (GLM)
• Three types of link function: Logit, Probit, and Complementary log-log (cloglog)
• Building a logistic regression to predict drug use and compare these three types of GLM

In Machine Learning 101 courses, stats professors introduce GLM right after linear regression as the next stepping stone of becoming data scientists. GLM comes with several forms, and the most well-known ones are logit, probit, and cloglog.

[20 Free ODSC Resources to Learn Machine Learning]

These GLMs are well suited for classification questions: to be or not to be, to vote or not to vote, and to click or not to click.

Basics

Usually, GLM for binary data can be expressed in the following form:

where g represents a linear relation of the predictors (on the right) of the probability p, and g is a function which maps p ∈[0,1] to ℝ.

There are three ways of linking the components on the left and right.

Logit:

In words, the log form of p.

Probit:

In words, the inverse of the cumulative density function of the normal distribution.

Cloglog:

In words, the log form of the negative value of the log form of the probability of not happening. Confused? At least, I’m. The link function for this one is straightforward.

OK, let’s move on and build GLM models to predict who is more vulnerable to drug use and learn to read plots.

1. Load, clean, and splitting the dataset

library(readr)
drug_use <- read_csv(‘drug.csv’,col_names=c(‘ID’,’Age’,’Gender’,’Education’,’Country’,’Ethnicity’,’Nscore’,’Escore’,’Oscore’,’Ascore’,’Cscore’,’Impulsive’,’SS’,’Alcohol’,’Amphet’,’Amyl’,’Benzos’,’Caff’,’Cannabis’,’Choc’,’Coke’,’Crack’,’Ecstasy’,’Heroin’,’Ketamine’,’Legalh’,’LSD’,’Meth’,’Mushrooms’,’Nicotine’,’Semer’,’VSA’))
library(dplyr)
drug_use <- drug_use %>% mutate_at(as.ordered, .vars=vars(Alcohol:VSA))
drug_use <- drug_use %>%
 mutate(Gender = factor(Gender, labels=c(“Male”, “Female”))) %>%
 mutate(Ethnicity = factor(Ethnicity, labels=c(“Black”, “Asian”, “White”,
 “Mixed:White/Black”, “Other”,
 “Mixed:White/Asian”,
 “Mixed:Black/Asian”))) %>%
 mutate(Country = factor(Country, labels=c(“Australia”, “Canada”, “New Zealand”,
 “Other”, “Ireland”, “UK”,”USA”)))#create a new factor variable called recent_cannabis_use
drug_use = drug_use %>%
mutate(recent_cannabis_use=as.factor(ifelse(Cannabis>=”CL3",”Yes”,”No”)))#create a new tibble that includes a subset of the original variable
#data split into training and test sets
drug_use_subset <- drug_use %>% select(Age:SS, recent_cannabis_use)
set.seed(1)
traint.indices = sample(1:nrow(drug_use_subset),1500)
drug_use_train = drug_use_subset[traint.indices,]
drug_use_test = drug_use_subset[-traint.indices,]
dim(drug_use_train)
dim(drug_use_test)[1] 1500   13
[1] 385  13

So, the train set has a 1500*13 dimension, and the test set has a 385*13 dimension.

2. Fit a logistic regression

#use logit as the link function
glm_fit = glm(recent_cannabis_use ~ .,data=drug_use_train,family=binomial(link= “logit”))
summary(glm_fit)Call:
glm(formula = recent_cannabis_use ~ ., family = binomial(link = "logit"),
    data = drug_use_train)

Deviance Residuals:
    Min       1Q   Median       3Q      Max
-3.0024  -0.5996   0.1512   0.5410   2.7525

Coefficients:
                           Estimate Std. Error z value Pr(>|z|)
(Intercept)                1.33629    0.64895   2.059 0.039480 *
Age                       -0.77441    0.09123  -8.489  < 2e-16 ***
GenderFemale              -0.65308    0.15756  -4.145 3.40e-05 ***
Education                 -0.41192    0.08006  -5.145 2.67e-07 ***
CountryCanada             -0.67373    1.23497  -0.546 0.585377
CountryNew Zealand        -1.24256    0.31946  -3.890 0.000100 ***
CountryOther               0.11062    0.49754   0.222 0.824056
CountryIreland            -0.50841    0.69084  -0.736 0.461773
CountryUK                 -0.88941    0.39042  -2.278 0.022720 *
CountryUSA                -1.97561    0.20101  -9.828  < 2e-16 ***
EthnicityAsian            -1.19642    0.96794  -1.236 0.216443
EthnicityWhite             0.65189    0.63569   1.025 0.305130
EthnicityMixed:White/Black 0.10814    1.07403   0.101 0.919799
EthnicityOther             0.66571    0.79791   0.834 0.404105
EthnicityMixed:White/Asian 0.48986    0.96724   0.506 0.612535
EthnicityMixed:Black/Asian13.07740  466.45641   0.028 0.977634
Nscore                    -0.08318    0.09163  -0.908 0.363956
Escore                    -0.11130    0.09621  -1.157 0.247349
Oscore                     0.64932    0.09259   7.013 2.33e-12 ***
Ascore                     0.09697    0.08235   1.178 0.238990
Cscore                    -0.30243    0.09179  -3.295 0.000984 ***
Impulsive                 -0.14213    0.10381  -1.369 0.170958
SS                         0.70960    0.11793   6.017 1.78e-09 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Interpretations of are straightforward, and significant variables

include: age, female, education, country variable (ZJ, UK, USA), oscore, score, and SS.

3. Probit and cloglog

#probit link function
glm_fit_probit = glm(recent_cannabis_use ~ .,data=drug_use_train,family = binomial(link = “probit”))
prob_training_probit = predict(glm_fit_probit, type=”response”)#c-log-log” link
glm_fit_clog = glm(recent_cannabis_use ~ .,data=drug_use_train,family = binomial(link = “cloglog”))
prob_training_clog = predict(glm_fit_clog, type=”response”)

4. Compare these three plots

# compare logit and probit
plot(prob_training_logit,prob_training_probit,xlab = “Fitted Values of Logit Model”,ylab= “Fitted Values of Probit Model”, main= “Plot 1: Fitted Values for Logit and Probit Regressions”, pch=19, cex=0.2,abline(a=0,b=1,col=”red”))

As well known, probit and logit predict almost the same values as they aligh closely on the 45-degree line. Probably, the only difference lies in the middle range between 0.5 to 0.8 where the probit model predicts value slightly below the abline.

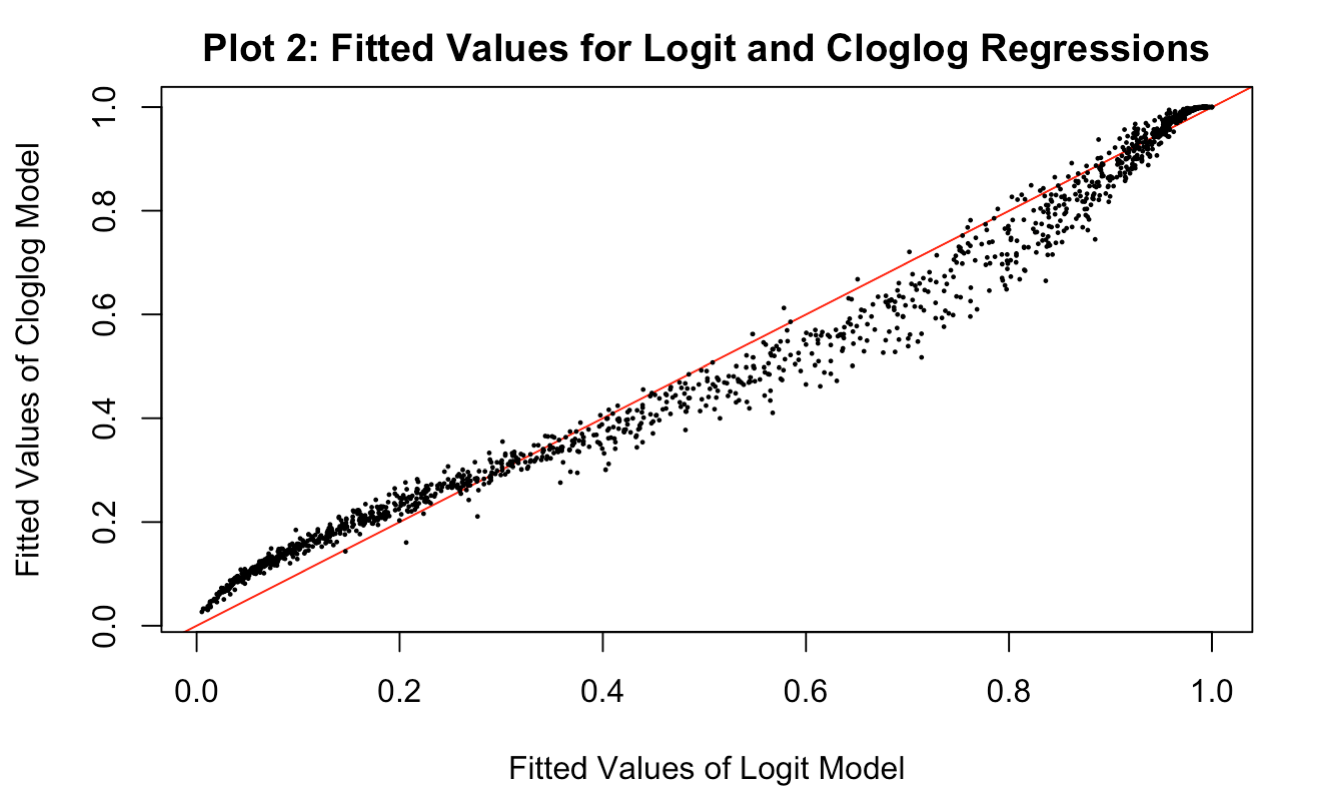

# compare logit and cloglog
plot(prob_training_logit,prob_training_clog,xlab = “Fitted Values of Logit Model”,ylab= “Fitted Values of Cloglog Model”, main= “Plot 2: Fitted Values for Logit and Cloglog Regressions”, pch=19, cex=0.2,abline(a=0,b=1,col=”red”))

This is an interesting plot. C-loglog generates predictions higher value in the early stage, followed by lower dispersed predictions than the logit in the middle range.

[Related Article: 3 Common Regression Pitfalls in Business Applications]

In Machine Learning, logistic regression serves as the 101 technique that data scientists can apply.
