Render Interactive Plots with Matplotlib Render Interactive Plots with Matplotlib
Interactive charts are loved by all as they can tell a story more effectively. The same is true in data science... Render Interactive Plots with Matplotlib

Interactive charts are loved by all as they can tell a story more effectively. The same is true in data science and allied fields. Exploratory data analysis is an essential step in the data preprocessing pipeline, and there are a lot of libraries available in the ecosystem to achieve that. The graphic below beautifully encapsulates this idea.

Source: Pyviz (Nicolas P. Rougier) adaption of Jake VanderPlas original chart

Even with so many choices, Matplotlib , fondly known as the Grandfather of python visualization packages remains a favorite for many. The lack of interactiveness, however, remains a bottleneck. So, workarounds have been devised to include interactivity via some third-party libraries. But did you know that it is also possible to create interactive plots with matplotlib directly, provided you are using an interactive backend? This article will look at two such backends and how they render interactivity within the notebooks, using only matplotlib.

Matplotlib caters to different users and hence supports various backends. As per the documentation:

the “frontend” is the user facing code, i.e., the plotting code, whereas the “backend” does all the hard work behind-the-scenes to make the figure.

This means the pre-requisite for interactivity is having an interactive backend. The default backend in the Jupyter notebooks is the inline backend which is enabled by %matplotlib inline.It is great at rendering static images but offers no interactive features like pan, zoom, or auto-updating the figures from other cells.

On the contrary, there are backends which when enabled, render interactive images. This article will go over the two common ones and so that you can use them in your data visualization tasks.

1. The nbagg backend

The backend_nbagg renders interactive figures in a notebook. It makes use of the infrastructure developed for the webagg backend.

Enabling the backend

To enable the backend in the Jupyter notebook, type the following

%matplotlib notebook

Usage

Here is an elementary example to showcase the usage of the nbagg backend.

# The code is to be run in a Jupyter Notebook
import matplotlib.pyplot as plt
%matplotlib notebookplt.plot([1,2,3,4,5,6,7], [10, 50, 100, 23,15,28,45], linewidth = 3, c = 'g')

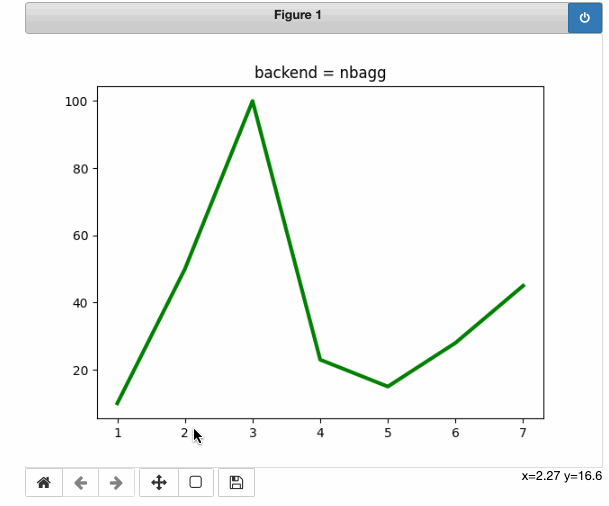

Interactive matplotlib plot with nbagg backend | Image by Author

It is also possible to auto-update the figure from other cells. For instance, the line chart can be updated via the code executed in the subsequent cells in the figure below.

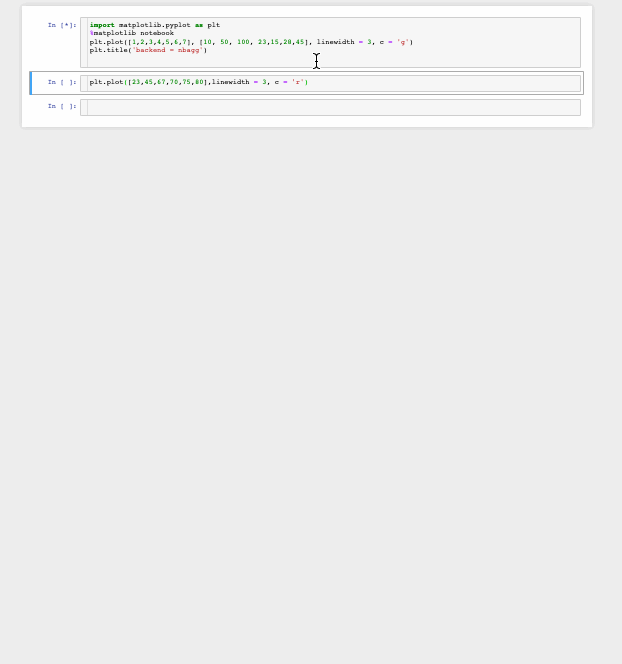

auto-update the figure from other cells in Matploltib | Image by Author

This functionality can be switched off easily with a blue button 🔵 provided on the right-hand side corner. When clicked, the interaction will stop, and a new plot will be generated in the next cell. It’s that simple.

Switching off the interactivity |Image by Author

The interactivity is not only limited to 2D plots but can also be observed in 3D plots. The code has been taken from matplotlib’s official documentation.

# The code is to be run in a Jupyter Notebook or Jupyter Labimport matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import axes3d
%matplotlib notebook
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')# Grab some test data.
X, Y, Z = axes3d.get_test_data(0.05)# Plot a surface plot.
ax.plot_surface(X, Y, Z, rstride=10, cstride=10, )plt.show()

A 3D interactive plot created using Matplotlib(nbagg backend) | Image by Author

Disadvantage

This option works well and gets our work done, but it is not compatible with Jupyter Lab. As a result, it isn’t of much use for the Jupyter Lab users. Also, the save option doesn’t seem to work for me. There is a better alternative to achieve the same results, albeit with a different backend.

2. The Ipyml backend — A better alternative

The ipyml backend renders interactive figures in the ‘classic’ notebook as well as the Jupyter lab. The ipyml backend uses the ipywidget framework and needs to be installed separately. Widgets are used to build interactive GUIs right in the notebook environment. With the help of controls like a slider, textbox, etc., users can seamlessly interact with their visualizations.

Installation

Ipympl’s can be easily installed with pip or conda. Refer to the documentation for more details.

pip install ipymplor conda install -c conda-forge ipympl

For Jupyter Lab users, node js and jupyterLab extension manager are also required. For a better experience, it is recommended to use JupyterLab >= 3.

conda install -c conda-forge nodejs
jupyter labextension install @jupyter-widgets/jupyterlab-manager jupyter-matplotlib

Enabling the backend

To be able to use the ipyml backend, one needs to type the following :

%matplotlib widget

Now that we have fulfilled all the requirements, it’s time for the demo.

Usage

We’ll use the same example as we used in the last section. This will also help us to compare the two functionalities.

# The code is to be run in a Jupyter Notebook or Jupyter Lab
import matplotlib.pyplot as plt
%matplotlib widgetplt.plot([1,2,3,4,5,6,7], [10, 50, 100, 23,15,28,45])

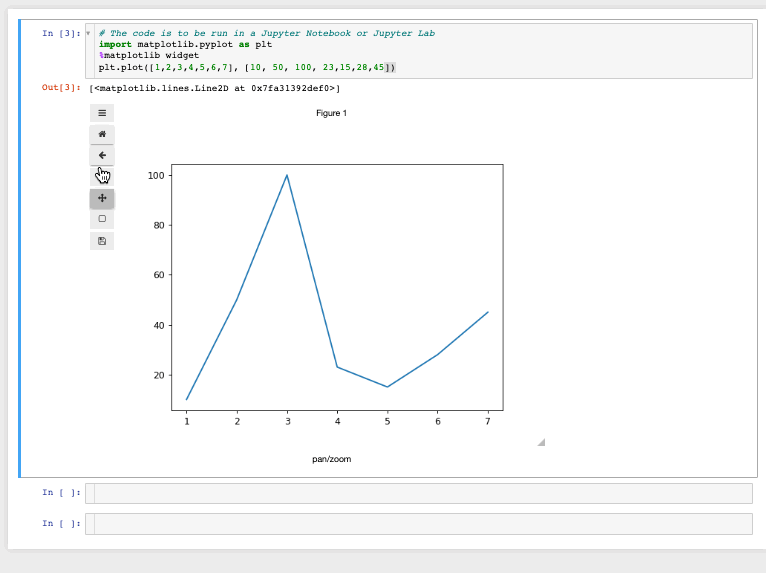

Interactive matplotlib plot with Ipyml backend | Image by Author

The ipyml backend also works for the 3D visualizations.

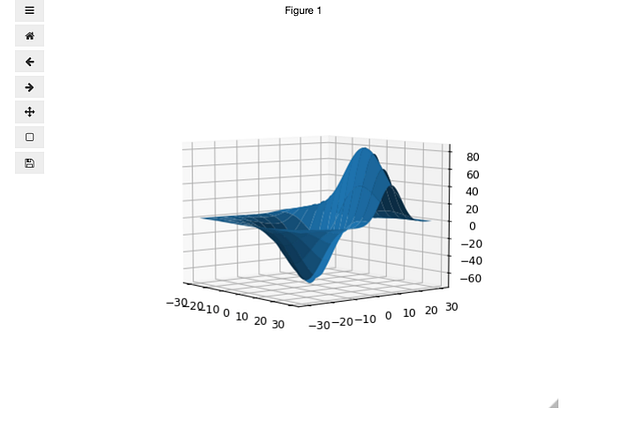

A 3D interactive plot created using Matplotlib(ipyml backend) | Image by Author

The controls, in this case, lie on the right side of the figure but other than that, it is pretty similar to the plot obtained in the last section. That is true, but there are some subtle differences, in case you have noticed:

  • Plots can be saved as static images.

Saving plots as static images | Image by Author

  • The plot widget can be resized by the UI.

This is a great feature that I haven’t seen in most of the other visualization libraries.

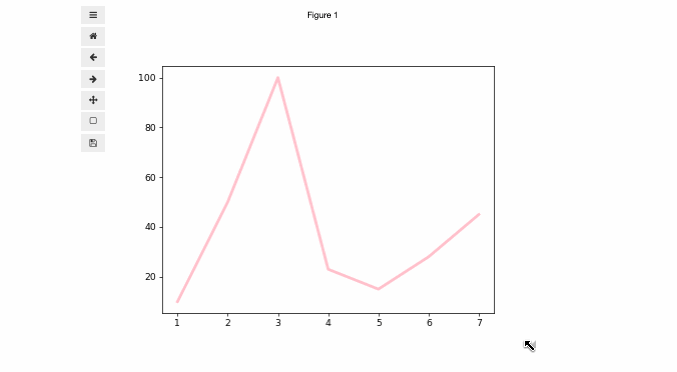

Resizing plots with the UI | Image by Author

  • The ipyml backend enables interactivity in matplotlib and all the libraries built on top of matplotlib like Pandas, Geopandas, Seaborn, etc.

Here is a summary of what we covered in this article. We learnt about a few of the matplotlib’s backends and learnt about the ones that enable interactivity. Both nbagg and ipyml seem to work great, but ipyml has additional features that are preferable. I’m sure you’ll like to experiment with these backends and see the interactive features for yourself. If you liked this article, I believe you’ll also like few other pieces that I wrote involving matplotlib directly or indirectly.
